PRODUCT INTRODUCTION
|
Product Type
|

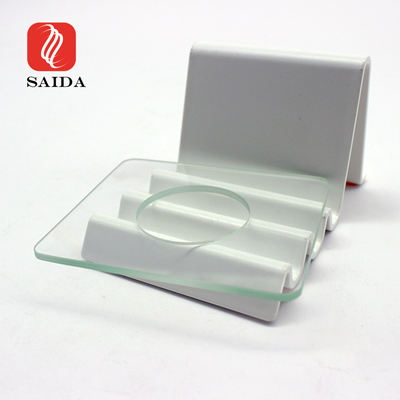

3mm Clear Tempered Touch Light Switch Cover Glass | |||||
| Raw Material | Crystal White/Soda Lime/Low Iron Glass | |||||
| Size | Size can be customized | |||||
| Thickness | 0.33-12mm | |||||
| Tempering | Thermal Tempering/Chemical Tempering | |||||
|
Edgework
|
Flat Ground (Flat/Pencil/Bevelled/Chamfer Edge are available) | |||||
| Hole | Round/Square (Irregular hole are available) | |||||
|
Color
|
Black/White/Silver (up to 7 layers of colors) | |||||
|
Printing Method
|
Normal Silkscreen/High Temperature Silkscreen
|
|||||
| Coating |
Anti-Glaring
|
|||||
| Anti-Reflective | ||||||
| Anti-Fingerprint | ||||||
|
Anti-Scratches
|
||||||
|
Production Process
|
Cut-Edge Polish-CNC-Clean-Print-Clean-Inspect-Pack | |||||
| Features | Anti-scratches | |||||
| Waterproof | ||||||
| Anti-fingerprint | ||||||
| Anti-fire | ||||||
| High-pressure scratch resistant | ||||||
| Anti-bacterial | ||||||
| Keywords |
Tempered Cover Glass for Display
|
|||||
| Easy Clean-up Glass Panel | ||||||
|
Intelligent Waterproof Tempered Glass Panel
|
||||||
Processing
1. Technology: cutting – CNC processing – edge/corner polishing – tempered – silk printing
2. Concave depth can be made up to 0.9-1mm for 3mm thickness glass
3. Size and tolerance: size & shape can be customized, CNC processing can controlled within 0.1mm.
4. Silk printing: can be customized upon offered Panton No. or sample
5. All glass will have protective film on two sides and packaged in wooden box for shipping
What is safety glass?
Tempered or toughened glass is a type of safety glass processed by controlled thermal or chemical treatments to increase
its strength compared with normal glass.
Tempering puts the outer surfaces into compression and the interior into tension.
Tempered Glass Advantages :
2. Five to eight times impact resistance as ordinary glass. Could stand higher static pressure loads than regular glass.
3. Three times more than ordinary glass, could bear the temperature change about 200°C-1000°C or more.
4.Tempered glass shatter into oval-shaped pebbles when broken, which eliminates the danger of sharp edges and relatively harmless to human body.
