Clear Borosilicate Glass Sheet 3.3 Sight Glass Wafer

Short Description:


  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Port: Shenzhen
  • Payment Terms: L/C,D/A,D/P,T/T

  • Product Detail

    FACTORY OVERVIEW

    PAYMENT & SHIPPING

    Product Tags

    oem 10 years experience

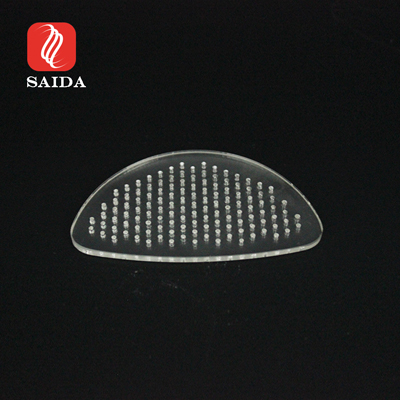

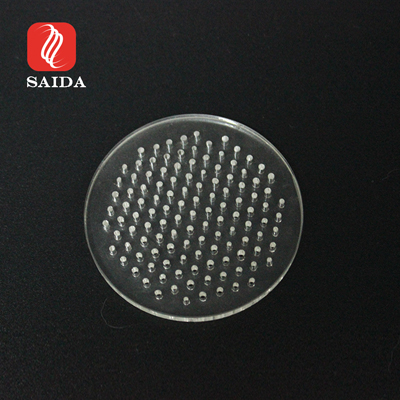

    408 (11)-400 408 (49)-400

    High Transmittance Clear Borosilicate Glass Sheet 3.3 Sight Glass with Laser Cut Holes

    FEATURES

    – 3.3 Coefficient of Thermal Expansion

    – High temperature resistance with  chemical stability

    – Super scratch resistant & waterproof & flame resistant

    – Perfect flatness and smoothness

    – Timely delivery date assurance

    – One to one consulation and professional guidance

    – Shape, size, finsh & design can customized as request

    – Anti-glare/Anti-reflective/Anti-fingerprint/Anti-microbial are available here

    High Borosilicate Glass Material Report

    密度(Density) 2.30g/cm²
    硬度(Mohs Hardness) 6.0Mohs’
    弹性模量(Elasticity Modulus) 67KNmm – 2
    抗张强度(Tensile Strength) 40 – 120Nmm – 2
    泊松比(Poisson Ratio) 0.18
    热膨胀系数 (20-400°C)(Coefficient of Thermal Expansion) (3.3)*10`-6
    导热率比热(90°C)(Specific Heat Conductivity) 1.2W*(M*K`-1)
    折射率(Refractive Index) 1.6375
    比热(Specific Heat) (J/KG) 830
    熔点(Melting Point) 1320°C
    软化点(Softening Point) 815°C
    连续工作温度/使用寿命(Continuous Operating Temperature/Service Life) 150°C
    ≥120000h(-60°C-150°C) 200°C
    ≥90000h(-60°C-200°C) 280°C
    ≥620000h(-60°C-280°C) 370°C
    ≥30000h 520°C
    ≥130000h
    抗热冲击(Thermal Shock) ≤350°C
    抗冲击强度(Impact Strength) ≥7J
    主要化学成分%含量(Main Chemical Composition % Content)
    SiO2 80.40%
    Fe203 0.02%

    Ti02 1.00%
    B203 12.50%
    Na20+K20 4.20%
    FE 0.02%
    耐水性(Water Tolerance) HGB 1级 (HGB 1)

    What is Borosilicate Glass

    Borosilicate glass is a type of glass with silica and boron trioxide as the main glass-forming constituents. Borosilicate glasses are known for having very low coefficients of thermal expansion (≈3 × 10⁻⁶ K⁻¹ at 20 °C), making them more resistant to thermal shock than any other common glass. Such glass is subjected to less thermal stress and can withstand temperature differentials without fracturing of about 165 °C (297 °F). It is commonly used for the construction of reagent bottles and flasks as well as lighting, electronics and cookware.

    Production Process

    production process

    FACTORY OVERVIEW

    factory machine

    CUSTOMER VISITING & FEEDBACK

    Feedback



    All MATERIALS USED ARE COMPLIANT WITH ROHS III (EUROPEAN VERSION), ROHS II  (CHINA VERSION), REACH  (CURRENT VERSION)
